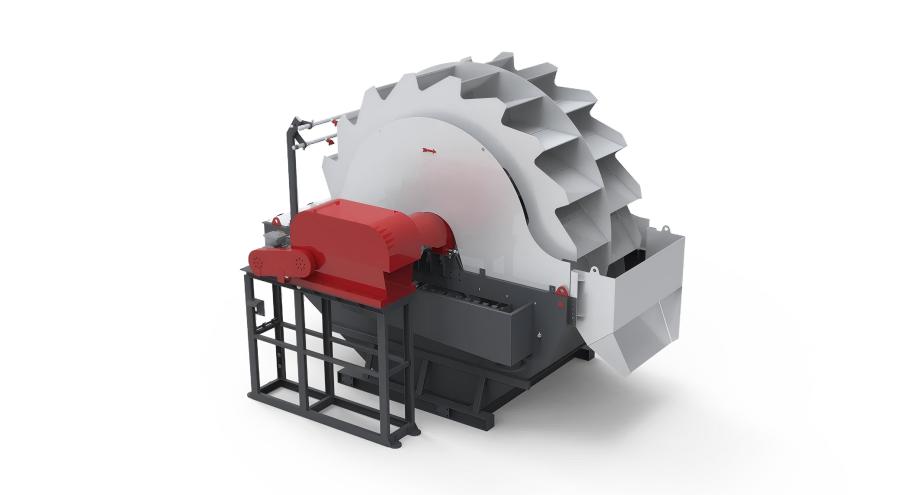

XSD Wheel Bucket Type Sand Washer
| 型号 Model | 叶轮直径 Impeller(mm) | 进料粒度 Feeding Size (mm) | 处理能力Capacity(t/h) | 功率 Power(kw) | 外形尺寸 Overall Dimension(mm) | |
| XSD2610 | φ2600 | ≤10 | 30-60 | 7.5 | 3320×2125×2670 | |
| XSD2900 | φ2900 | ≤10 | 50-90 | 15 | 3810×2686×3085 | |
| XSD3016 | φ3000 | ≤10 | 80-120 | 18.5 | 3845×3000×3080 | |
| XSD3220 | φ3000 | ≤10 | 120-200 | 22 | 4150×3780×3400 | |
| XSD3620 | φ3600 | ≤10 | 150-280 | 30 | 4600×3780×3900 | |
-Rotating Wheel Bucket Assembly: Slow-speed rotating wheel with integrated buckets lifts sand from water pool while allowing lighter clay, silt, and organic matter to settle and overflow
-Water Spray System: Multiple spray nozzles direct clean water onto sand as it rises, rinsing away remaining contaminants and ensuring thorough cleaning before discharge
-Dewatering Action: Inclined discharge chute and drainage screens remove excess water from washed sand, producing damp product suitable for immediate use or stockpiling without excessive runoff
-Sealed Bearing Housing: Multi-layer labyrinth seals protect wheel bearings from water ingress and sand contamination, extending service life in harsh washing environment
-Concrete Sand Preparation: Ready-mix concrete batching plants washing manufactured sand to remove stone powder and clay coatings that interfere with cement hydration and bond strength
-Foundry Sand Cleaning: Metal casting facilities reclaiming used foundry sand by removing binder residues, metal oxides, and fines for reuse in mold and core production
-Glass Sand Purification: Silica sand processing for glass manufacturing where iron oxide, chromite, and other mineral impurities must be reduced to meet stringent optical clarity requirements
-Construction Aggregate Washing: Infrastructure projects washing natural sand deposits containing clay balls, lignite, and deleterious materials that compromise concrete durability
