Model No: Compact Line · 100 – 150 t/h
limestone crushing plant production line
Quantity :

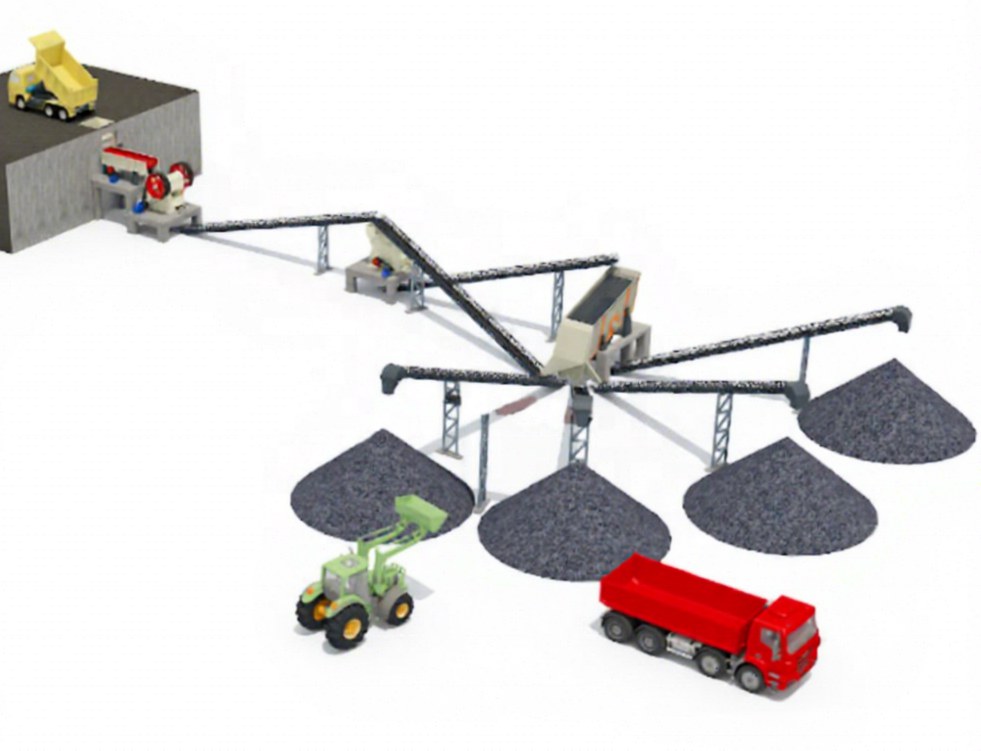

Introduction to Crushing Plant Production Line
Based on its extensive experience in mining operations, Xianglong Machinery has meticulously configured this high-yield, high-efficiency stone crushing production line for you. The core of this solution utilizes the classic combination of a jaw crusher and an impact crusher, making it particularly suitable for crushing rocks of medium to high hardness. The finished aggregate exhibits a cubic particle shape with low needle-like and flaky content, resulting in higher market value. The entire line integrates feeding, crushing, screening, and conveying, offering flexibility and allowing for rapid relocation and commissioning, significantly reducing overall operating costs. It is an ideal choice for various stone quarries, highways, construction projects, and more.
Crushing plant production line configuration
| Item | limestone crushing plant production line |
| Raw material: | limestone |
| Feed Size | <500 |
| Equipment Configuration: | Feeder,Jaw Crusher,Impact Crusher,Vibrating Screen. |
| Feeder : | 9638 |
| Jaw Crusher: | PE600*900 |
| Impact crusher: | PF1214 |
| Vibrating screen: | 4YK1860 |
| Finished product: | 0-5mm, 5-10mm, 10-20mm，20-31.5mm |
| Production capacity : | 100-150 tons/hour |
1. Feeding and Pre-screening:
Diabase ore is fed into a vibrating feeder (9638) by an excavator or loader. The feeder uniformly and continuously feeds the material into the jaw crusher, while simultaneously screening out some soil and natural fines.
2. Primary Crushing (Coarse Crushing):
A PE600×900 jaw crusher performs the first stage of high-intensity crushing, reducing the material to an intermediate particle size of ≤150mm.
3. Secondary Crushing and Shaping (Medium Crushing):
The coarsely crushed material is conveyed to a PF1214 impact crusher via a belt conveyor. The impact crusher uses high-speed rotating hammers to impact the material, causing it to repeatedly collide and crush within the crushing chamber, thus obtaining aggregates with excellent particle shape.
4. Screening and Grading:
The crushed mixture is lifted by a belt conveyor to a 4YK1860 circular vibrating screen. The material is precisely screened into various preset specifications of finished products on the screen surface and falls into different stockpiling areas.
