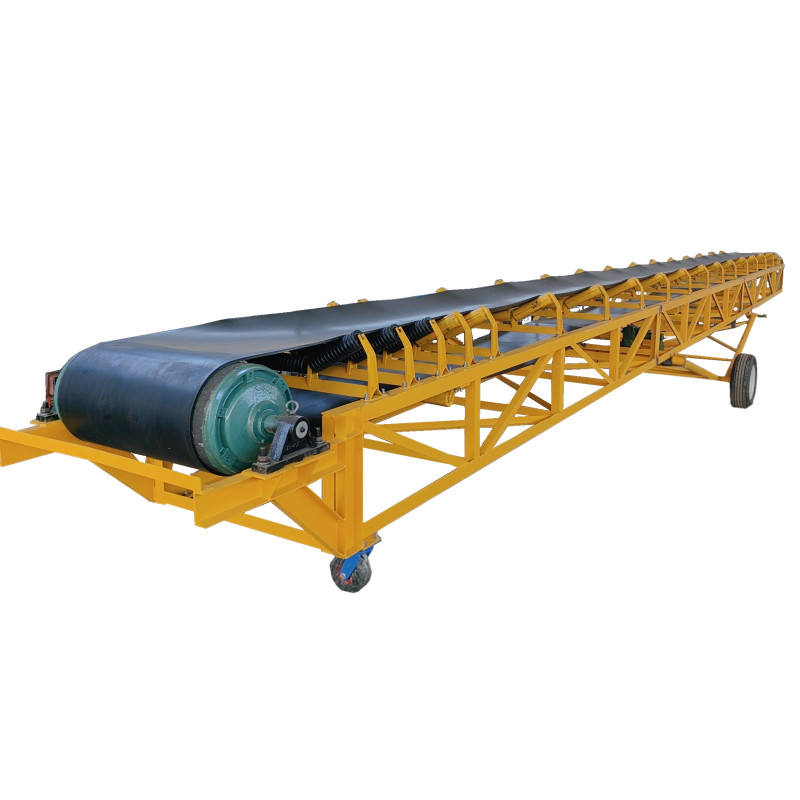

Belt Conveyor

The Belt Conveyor is a continuous material handling equipment utilizing moving belt for efficient transport of bulk materials over short to long distances in mining, quarrying, and industrial applications. This essential equipment connects processing operations.

Quantity :

Contact Now

Specification：

胶带宽度 Belt Width	输送长度/功率 Transport Length (m) / Power (kw)			输送速度 Transportation Speed (m/s)	输送量 Throughput (t/h)
400	≤10/3	12–15/3–4	15–30/4–7.5	1.25–2.0	30–60
500	≤10/3	12–15/4–5.5	15–30/5.5–7.5	1.25–2.0	40–80
650	≤10/4	12–15/7.5	15–30/7.5–11	1.25–2.0	80–120
800	≤10/4	12–15/7.5	15–30/7.5–15	1.25–2.0	120–200
1000	≤10/5.5	10–20/7.5–11	20–40/11–22	1.25–2.0	200–320
1200	≤10/7.5	10–20/7.5–15	20–40/15–30	1.25–2.0	290–480
1400	≤10/11	10–20/15–22	20–40/22–45	1.25–2.0	400–680
1600	≤10/15	10–20/22–30	20–50/30–75	1.25–2.0	600–1080
1800	≤10/18.5	10–20/30–45	20–50/45–110	1.0–2.0	800–1500
2000	≤10/22	10–20/45–55	20–50/55–132	1.0–2.0	1000–2000
2400	≤10/30	10–20/55–75	20–50/75–185	1.0–2.0	1500–3000

Core Function ：

Continuous Belt Transport: Endless rubber belt loop driven by motorized pulleys moves bulk materials horizontally or on inclines up to 20 degrees, providing uninterrupted material flow between processing stages.

Heavy-Duty Belt Construction: Multi-ply fabric or steel cord reinforced belts with abrasion-resistant rubber covers handle sharp, heavy materials while resisting tearing, impact, and environmental degradation.

Variable Speed Drive: VFD-equipped drive systems enable precise speed adjustment to match conveying capacity with upstream and downstream equipment requirements for optimized plant performance.

Automatic Tensioning: Gravity or hydraulic take-up systems maintain optimal belt tension automatically, preventing slippage and tracking issues while extending belt service life significantly.

Application ：

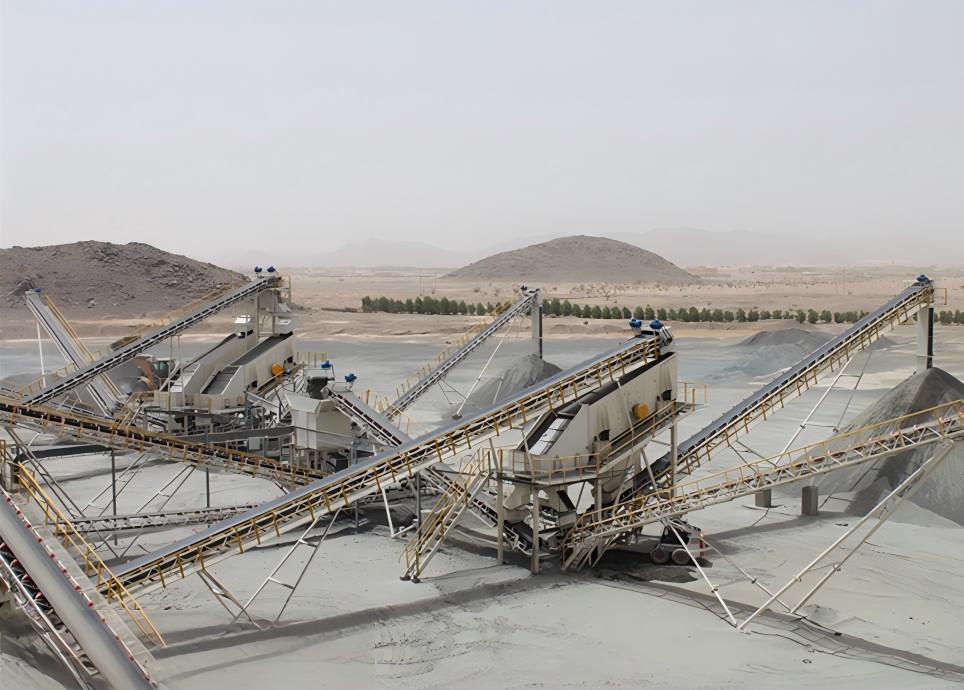

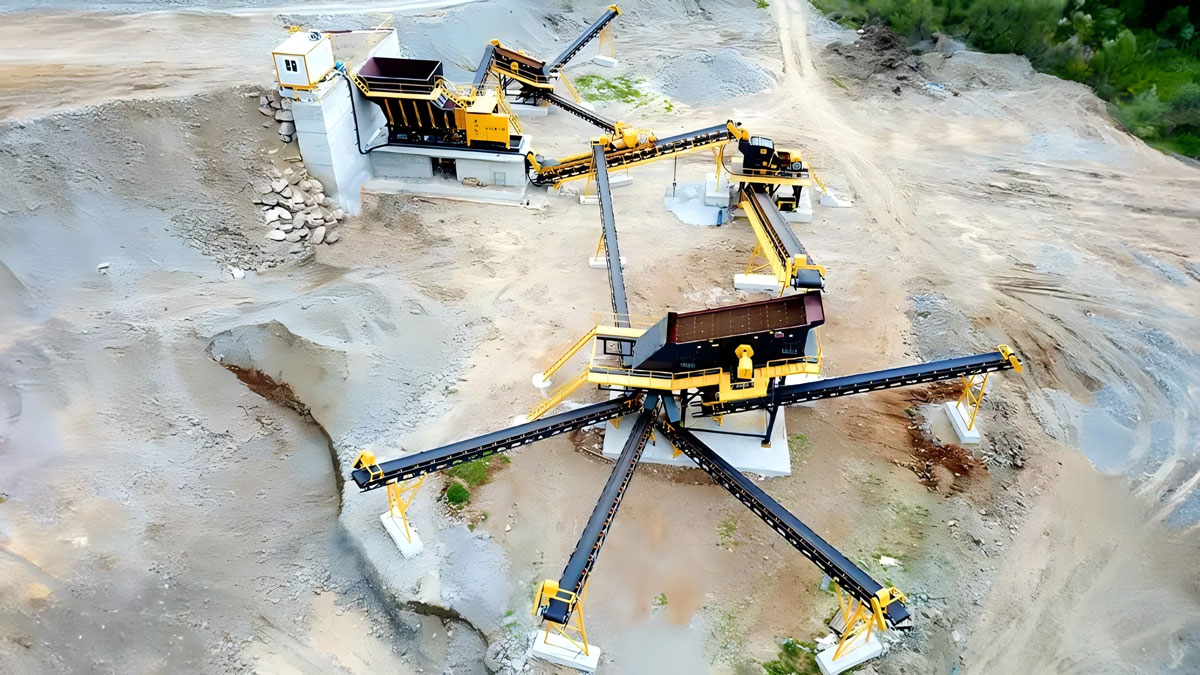

Quarry Material Transport: Moving crushed stone, gravel, and sand between crushing, screening, and washing stages in aggregate production facilities for construction and infrastructure projects.

Mining Operations: Transporting ores, coal, and overburden materials in mining operations over distances from meters to kilometers, replacing truck haulage for improved economics.

Port and Terminal: Loading and unloading bulk materials including coal, iron ore, grain, and fertilizers at ports and terminals for domestic and international shipping operations.

Industrial Facilities: Material handling in cement plants, power plants, steel mills, and chemical facilities where reliable bulk material transport is essential for continuous operations.

Advantage ：

Low Operating Costs: Energy-efficient drive systems and minimal maintenance requirements deliver lowest cost-per-ton material transport compared to alternative handling methods like trucks or loaders.

HighCapacityRange: Standard conveyors handle 50 to 5,000+ tons per hour with belt widths from 500mm to 2,400mm, accommodating operations from small quarries to major mining projects.

Long-Distance Capability: Single flight conveyors extend up to 10km without transfer points, reducing dust generation, spillage, and maintenance complexity of multiple conveyor systems.

EnvironmentalBenefits: Enclosed conveyor galleries minimize dust emissions and material loss while electric drives produce zero direct emissions compared to diesel-powered alternatives.
