Stone Crusher Plant: What It Is and How to Set Up One

1. What Is a Stone Crusher Plant?

A stone crusher plant (also known as an aggregate crushing production line, quarry crushing plant, or stone processing system) is an integrated industrial assembly that processes raw stone, ore, river pebbles, or construction waste into standardized aggregates through multiple processes including feeding, crushing, screening, sand making, washing, and conveying.

Unlike a single crusher machine, a complete stone crusher plant is a systematic solution. It features continuous automated production, stable output, adjustable particle sizes, and environmental protection capabilities. Finished products typically include 0–5mm manufactured sand, 5–10mm, 10–20mm, 20–31.5mm crushed stone, widely used in concrete, road construction, railway engineering, and water conservancy projects.

1.1 Core Industry Characteristics of Stone Crusher Plants

• High wear resistance and heavy-load working conditions
• Combination of standardized process and customized configuration
• Strict environmental protection and emission requirements
• Obvious scale economy and cost control demands
• Dual application scenarios: fixed stationary lines and mobile crushing stations
• High automation and low labor dependency

2. Types of Stone Crusher Plants by XLM Machinery

XLM Machinery provides three main categories of stone crusher plants to meet different project requirements.

2.1 Stationary Stone Crusher Plant

Suitable for long-term quarries, large-scale aggregate bases, and fixed production sites. Features high output, low unit cost, stable operation, and easy environmental management. Output ranges from 30TPH to 800TPH.

2.1.1 Medium-Scale Stationary Line (100–300TPH): XLM PE Jaw + PF Impact Crusher Combination

Most mainstream commercial aggregate plant configuration, suitable for urban ready-mix concrete raw material supply, provincial highway base material production. XLM 200TPH Classic Medium Crushing Line Scheme:

1. ZSW600×130 heavy-duty vibrating feeder;
2. PE600×900 jaw primary crusher;
3. PF1315 impact fine crusher (impact plate adjustable gap for cubic aggregate shaping);
4. 3YK2160 three-layer vibrating screen for four-way finished material classification;
5. XLM VSI7611 vertical shaft sand maker (optional artificial sand module);
6. Applicable raw materials: limestone, river pebble, dolomite, andesite; finished aggregate owns excellent cubic grain shape without excessive flaky particles.

2.1.2Large Heavy-Duty Stationary Line (300–500TPH): XLM Multi-Cylinder Cone Crusher Complete Line

Customized for large open-pit mines, national key infrastructure supporting aggregate bases, high-hardness granite/basalt processing projects. Core XLM technical highlight: multi-cylinder hydraulic cone crusher replaces impact crusher for secondary crushing, high wear resistance to handle rock compressive strength above 250MPa. Standard 500TPH XLM heavy crushing line collocation: heavy apron feeder + PE900×1200 jaw crusher + HPS400 multi-cylinder cone crusher + VSI9526 sand maker + 4YK2460 four-layer vibrating screen + full intelligent monitoring system with real-time vibration and temperature sensors.

2.2 Tyre-Mounted Mobile Crushing Station

Integrated vehicle-mounted design, no foundation required, movable at any time. Ideal for short-term projects, road construction, urban construction waste recycling, and scattered mining sites.

XLM tyre mobile stone crusher plant integrates feeding, crushing and screening equipment on heavy-duty vehicle chassis, with convenient highway transportation via tractor head without fixed foundation construction. Core Applicable Scenarios:

• Temporary road renovation projects with frequent site relocation;
• Urban construction waste on-site recycling without raw material transportation;
• Short-cycle mountain small quarry mining with limited flat terrain;
• Border infrastructure projects with temporary production cycles below 2 years.
• XLM exclusive product advantages compared with peer mobile stations:

1. Integral dust removal silo pre-installed on chassis, no separate auxiliary vehicle needed;
2. Hydraulic support legs for fast leveling, full commissioning finished within 4 hours after site arrival;
3. Optional dual power supply: industrial electric motor or diesel generator unit for power-free remote construction sites. Common XLM tyre mobile models: mobile jaw crushing station, mobile impact crushing station, mobile sand making integrated station, combined mobile crushing-screening two-in-one unit.

2.3 Crawler Mobile Crushing Plant

Hydraulic self-propelled crawler chassis, strong off-road performance, suitable for mountain mines, remote areas, and complex terrains.

2.4 Comparison Table

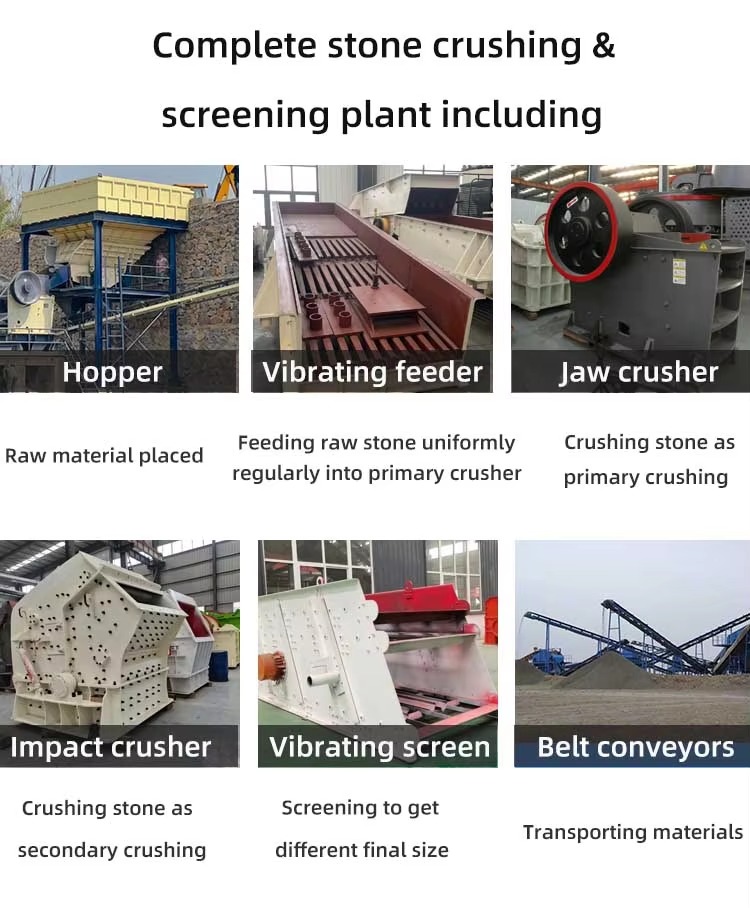

3. Core Equipment Composition of XLM Stone Crusher Plant

A standard stone crusher plant consists of the following core equipment, all independently developed and produced by XLM Machinery.

3.1 Vibrating Feeder

Uniformly feeds raw materials, filters mud, prevents blockage, ensures stable feeding for the entire line.

3.2 Jaw Crusher (Primary Crushing)

XLM PE series jaw crusher features deep crushing cavity, high manganese alloy jaw plates, strong crushing force, suitable for coarse crushing of large raw stones.

3.3 Cone Crusher or Impact Crusher (Secondary Crushing)

Impact crusher for medium-low hardness stone with good grain shape. Cone crusher for high-hardness granite, basalt, and ore with strong wear resistance.

3.4 VSI Sand Making Machine

Used for fine crushing and sand shaping to produce high-quality manufactured sand for construction.

3.5 Vibrating Screen

Classifies materials into different sizes. Unqualified materials return for re-crushing in a closed-circuit system.

3.6 Auxiliary Equipment

Belt conveyors, sand washers, dust collectors, and PLC intelligent control cabinets to achieve fully automatic production.

4. Step-by-Step Guide: How to Set Up a Stone Crusher Plant

Step 1: Feasibility Study & Raw Material Testing

Test raw material hardness, moisture content, and abrasiveness. Confirm output demand, finished product specifications, and site conditions. XLM Machinery provides free raw material testing and preliminary analysis.

Step 2: Permit & Environmental Compliance Preparation

Obtain land use, environmental assessment, mining, and emission permits. All XLM equipment is CE certified to meet global standards.

Step 3: Customized Configuration & Layout Design

XLM engineers design 2D layouts based on site size, output, and material properties to optimize workflow and reduce energy consumption.

Step 4: Civil Engineering & Foundation Construction

Construct foundations according to XLM drawings to ensure stable equipment installation.

Step 5: Equipment Delivery & On-Site Installation

XLM provides global delivery and on-site installation by professional engineers.

Step 6: Commissioning & Trial Production

Test running, parameter adjustment, output calibration, and operator training until stable production is achieved.

Step 7: Formal Production & Daily Maintenance

Establish maintenance cycles for wear parts, lubrication, and cleaning to ensure long service life.

5. Cost Analysis of a Stone Crusher Plant

5.1 Main Equipment Procurement Cost (XLM Factory Direct Price No Middleman Markup)

XLM Machinery is original manufacturer without intermediate trading dealers, all stone crusher plant prices direct ex-factory cost, 10–20% lower than trading company resale quotations for equivalent configuration lines. Reference ex-factory price range (only main crushing equipment, excluding logistics and installation):

• 30–100TPH small stationary stone crusher plant: $28,000 – $115,000;
• 100–300TPH medium complete aggregate crushing line: $130,000 – $420,000;
• 300–800TPH heavy-duty cone crusher plant: $450,000 – $1,200,000;
• Tyre mobile integrated crushing station 50–200TPH: $40,000 – $260,000;
• Crawler hydraulic mobile crushing unit: $180,000 – $580,000.

5.2 Civil Construction, Power & Auxiliary Facility Cost

• Cost fluctuates based on local construction labor and material price, average global reference proportion: accounts for 18–30% of total equipment procurement cost, including crusher foundation, finished aggregate storage yard hardening, power transformer equipment, dust removal water tank construction. XLM optimized compact layout reduces civil engineering area requirement by 15% to cut foundation expenditure.

6. Why Choose XLM Machinery?

• 18 years of professional R&D and manufacturing experience
• XLM Machinery (Henan Xianglong Machinery Manufacturing Co., Ltd.) established in 2008, covering 14,800 square meters standardized production workshop, specializing in stone crusher, complete crushing production line R&D, casting, assembly and export, independent full industrial chain without outsourcing core component production. Annual export volume of complete stone crusher plants covers over 30 countries including Nigeria, Kenya, Malaysia, Indonesia, Vietnam, Peru and Saudi Arabia, accumulating hundreds of on-site overseas project cases.
• CE certified, reliable quality
