1. Why use a jaw crusher to crush stones?

In mining and aggregate production lines, the performance of the primary crushing (coarse crushing) equipment directly determines the operating efficiency and core comprehensive cost of the entire production line when dealing with raw, hard materials with complex compositions that have just been blasted and excavated. As the absolute mainstay of aggregate production lines, jaw crushers are irreplaceable crushing equipment due to their unparalleled structural advantages and economic value .



Features

1)It has a robust structure and is designed specifically for "tough nuts to Hard stone".

Natural stones such as granite, basalt, and river pebbles typically possess extremely high hardness and compressive strength. XLMAC Machinery has deeply optimized the traditional compression crushing principle, incorporating targeted impact-resistant designs for high-hardness materials. The equipment's overall frame is highly rigid, maintaining structural stability even under high-intensity continuous impact loads, easily crushing various hard ores.

2)It features a high crushing ratio and a large feed inlet.

The core challenge in the heavy-duty coarse crushing stage lies in the large size of the raw stone particles and their tendency to jam. Xianglong Machinery's crusher features a scientifically optimized cavity design and an extra-large feed inlet, which not only effectively reduces the need for secondary manual crushing after blasting but also achieves an extremely high single-machine crushing ratio, enabling large pieces of material to be transformed into qualified material for secondary crushing in one step.

3)It is economical and durable, and reduces maintenance costs across the board.

Wear parts wear during the coarse crushing stage is one of the main operating costs for enterprises. We used high-manganese steel alloy wear parts in key areas, combined with an optimized moving jaw motion trajectory, significantly reducing ineffective friction between the material and the jaw plate. This not only significantly extends the replacement cycle but also minimizes downtime for maintenance thanks to the simple mechanical structure, ensuring maximum return on investment (ROI) for the entire production line over its lifecycle.

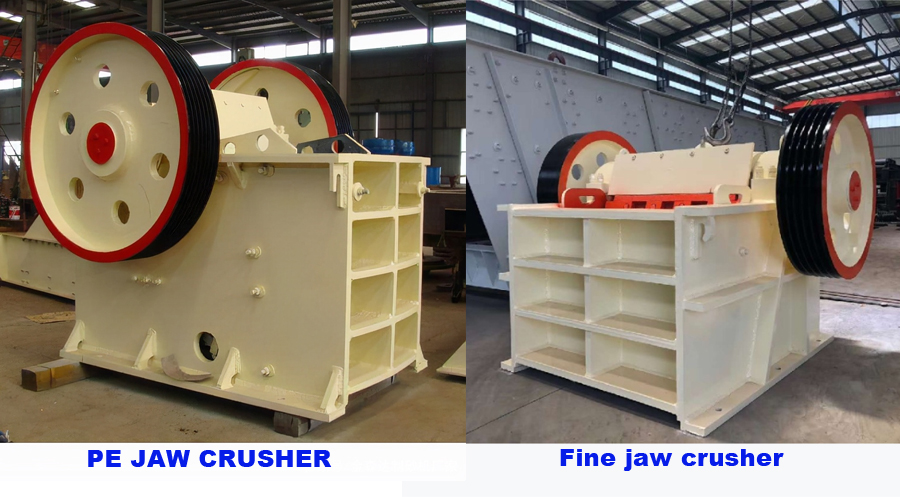

2. What are the key differences in parameters between a fine jaw crusher and a standard jaw crusher?

In actual production line configurations, many companies easily confuse standard jaw crushers (hereinafter referred to as "standard jaw crushers") with fine jaw crushers (hereinafter referred to as "fine jaw crushers"). Although both are based on the extrusion mechanism of the moving jaw and the fixed jaw (see the schematic diagram below), XLMAC Machinery has a fundamental functional distinction in the engineering parameter design of the two .

Jaw Crusher Core Extrusion Structure Principle ​​​​

(1) Parameter core comparison table

To visually quantify the technological differences between the two, the following is a summary of the core parameters in Xianglong Machinery's core manufacturing standards:

(2) Analysis of the engineering logic behind the parameters

A deeper analysis of these technical parameters reveals the completely different physical functions of the two in the production line:
① The unity of opposites between feeding and discharging (large feed, large output vs. small feed, fine output).

Standard jaw crushers have extremely wide feed openings, and their core mission is to "swallow boulders and perform initial crushing," focusing on the equipment's ability to handle large, high-hardness raw stones. In contrast, the fine jaw crusher designed by Xianglong Machinery has strictly controlled feed opening dimensions, while its discharge opening is tilted towards "refinement." This means that the fine jaw crusher is not used for the first stage of coarse crushing, but rather to receive the semi-finished products after coarse crushing, achieving precise "secondary refinement."

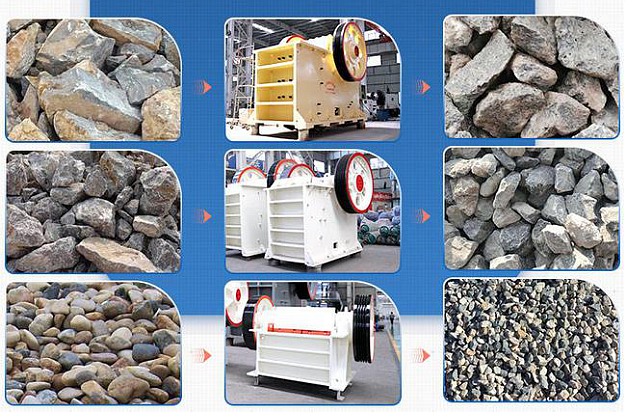

② Difference between crushing chamber type and power output

The standard jaw crusher's chamber design emphasizes the rapid descent of material under gravity and with a long stroke to maintain high throughput. In contrast, the fine jaw crusher has a deeper crushing chamber and a smaller angle between the fixed and movable jaws. This structure prolongs the residence time of material within the chamber.

To accommodate this cavity design, Xianglong Machinery increased the rotational speed of the eccentric shaft in the fine jaw crusher. The material undergoes more repeated pendulum compression during its descent, ensuring a more uniform particle shape and a significantly reduced proportion of needle-like and flaky particles in the final output, thus fundamentally optimizing the quality of the finished product.

3. How to accurately define the application division between coarse and fine crushing?

Understanding the parameter differences between standard jaw crushers and fine jaw crushers is crucial for determining the overall return on investment of the production line. Through long-term global project services, XLMAC Machinery has precisely positioned these two types of equipment at different process stages to achieve the optimal balance between capacity and energy consumption.

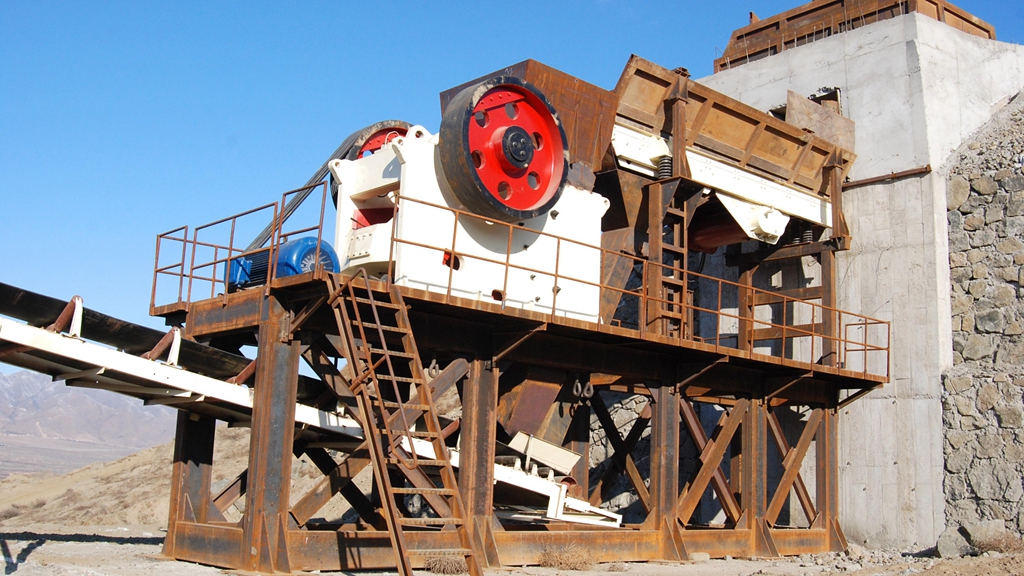

1)Standard Jaw Crusher: The "King of Coarse Crushing" in Heavy-Duty Primary Crushing

Standard jaw crushers have always held a dominant position as the "first crusher" in the process flow.

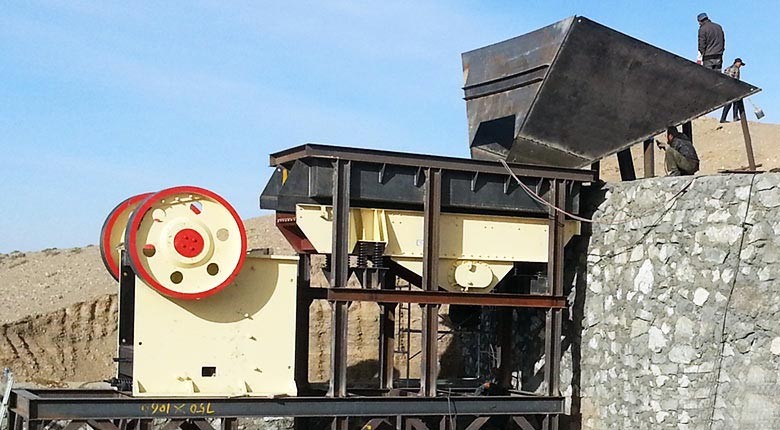

Process location : Usually follows the vibrating feeder and is at the very front of the entire processing line.

Application scenarios : Primarily used for large-scale mining, large-scale processing of urban river pebbles, and initial processing of stone materials for large-scale infrastructure projects. Its task is to process raw hard rock with extremely large particle sizes that has just been blasted or excavated.

Value proposition : Xianglong Machinery's standard jaw crusher, with its superior load-bearing capacity, plays a pioneering role in this stage. Its primary function is not to pursue high yield, but to transform boulders into semi-finished materials of controllable size through efficient and rapid coarse crushing, clearing feeding obstacles for subsequent secondary crushing equipment and ensuring the stability of continuous operation throughout the entire line.

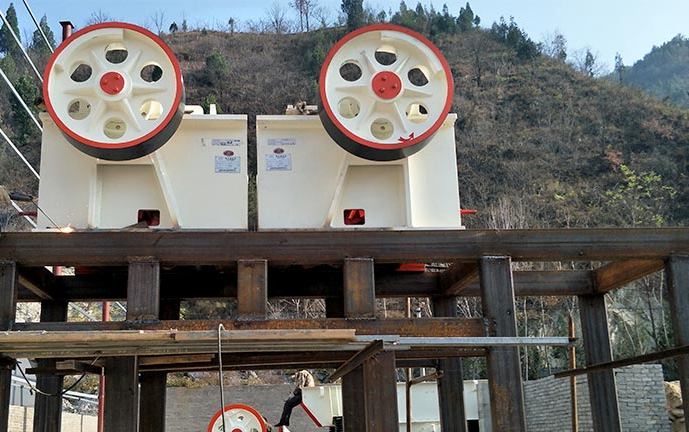

2)Jaw crusher: A powerful tool for fine crushing in small and medium-sized production lines.

Unlike standard jaw crushers that focus on large pieces of material, fine jaw crushers extend their process towards "refined control".

Process location : It is usually set after the coarse crushing equipment as a secondary crushing (medium and fine crushing) stage; or in a specific process, it directly processes small and medium-sized raw materials.

Application scenarios : Widely used in small and medium-sized sand and gravel production lines, independent sand making plants, and aggregate processing projects with strict requirements on finished product particle shape.

Value proposition : In many small and medium-sized projects or the processing of medium-hardness materials, configuring secondary crushing equipment such as cone crushers or impact crushers often means high initial costs. Xianglong Machinery's fine jaw crusher, with its special deep-cavity design and high-frequency extrusion mechanism, serves as a highly cost-effective alternative. It efficiently completes secondary crushing and outputs high-quality aggregates with uniform particle size and low needle-like and flaky content, helping companies quickly establish a high-performance closed-loop production line within a limited budget.

4.XLMAC Machinery recommends high-quality crushing equipment.

   Based on 20 years of technological accumulation and global customer feedback, XLMAC Machinery has carried out comprehensive material reconstruction and structural optimization of its classic PE and PEX series crushers, creating flagship crushing equipment that truly meets the needs of modern mines.

(1) XLMAC PE series: Heavy-duty "coarse crushing guarantee" for high-volume production

Xianglong Machinery's PE series standard jaw crusher has undergone targeted and robust upgrades to address common issues in primary crushing stages, such as rapid wear of hard rock and high impact loads.

① Overload-resistant bearing design :

We equipped the eccentric shaft with large-size, heavy-duty bearings that exceed the standards of its class, increasing its load-bearing capacity by more than 20% . Combined with the integral cast steel structure of the moving jaw, this ensures that the equipment maintains stable power output even when dealing with extremely hard raw stones.

② High manganese steel wear-resistant matrix :

Both the moving jaw plate and the fixed jaw plate are made of a proprietary high-manganese steel alloy, which has extremely strong work hardening properties. Under continuous extrusion and impact, the surface hardness increases accordingly, significantly extending the replacement cycle of vulnerable parts.

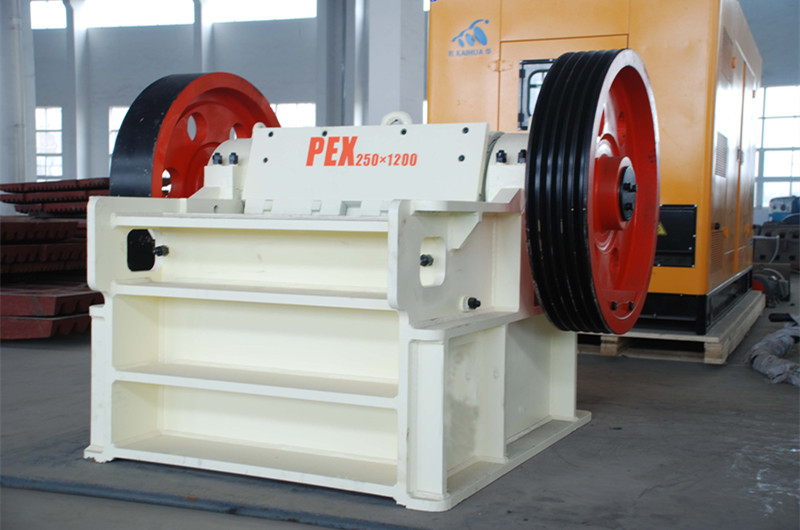

(2) XLMAC PEX series: High-precision medium and fine crushing "quality benchmark"

Xianglong Machinery's PEX series fine jaw crusher has undergone comprehensive fine-tuning in terms of cavity shape and dynamic curves:

Precise feed distribution and excellent particle shape :This series is equipped with a more convenient and precise discharge port adjustment system. The perfect combination of the deep cavity inclination angle and the motion trajectory multiplies the number of times the material is squeezed within the cavity. The output not only has controllable particle size, but also extremely low needle-like and flaky content, significantly improving the roundness of the aggregate, directly meeting the needs of subsequent sand making or high-standard building aggregates.

Low failure rate and compact layout :The optimized compound pendulum structure reduces ineffective friction and results in lower overall machine operating temperature. Its compact design makes it an ideal choice for upgrading or renovating small and medium-sized production lines, or for replacing expensive cone crushers in confined spaces.

3).Full lifecycle support: not just for devices, but for a comprehensive system of services.

Xianglong Machinery provides original, high-quality spare parts support covering the entire lifecycle of every PE and PEX series crusher. From customized production line solutions before sales to rapid response technical maintenance during operation, XLMAC is committed to helping customers reduce the risk of unplanned downtime and ensure that every mining asset can release its expected commercial value.

5.XLMAC Machinery's International Export Qualifications and Quality Certifications:

XLMAC Machinery possesses compliant qualifications and verified international quality standards, making it an ideal partner for ore producers and construction contractors . Not only has it established a strong foothold in the domestic market, but it has also successfully sold its crushing equipment to numerous countries and regions worldwide, thanks to its stringent international manufacturing standards.

 (1）Quality certification: Sold globally

Xianglong Machinery understands that the core of international competition is standards competition. Therefore, our production and quality control systems have been aligned with high international standards.

ISO9001 Quality Management System Certification : From raw material inspection upon arrival at the factory to non-destructive testing of welding processes, and then to no-load testing after the complete machine assembly , Xianglong Machinery implements Total Quality Management (TQM) in every detail of PE/PEX crusher manufacturing.

EU CE Certification : In response to the high concerns of international customers regarding safety, environmental protection, and electrical compliance, all of our crushing equipment has passed EU safety certification. It fully complies with European market access standards in terms of electrical protection, mechanical protection, and noise control, and is qualified to serve high-standard infrastructure projects in developed countries.

( 2 ) Global export capabilities: international delivery guarantee throughout the entire process

The unique aspect of overseas projects lies in the uncertainties introduced by geographical distance. Xianglong Machinery minimizes these uncertainties by building a mature export support system:
standard export packaging and customized logistics .

In response to the risks of moisture, salt spray corrosion, and turbulence commonly encountered in multimodal transport such as sea and land transport, Xianglong Machinery has customized heavy-duty rust-proof and moisture-proof packaging for key components such as the heavy-duty machine body, bearings, and motors of crushers. The structure has also been optimized for international standard containers to ensure that the equipment is delivered to project sites around the world intact.

Endorsement by successful cases in multiple regions :

Currently, XLMAC's crushing equipment is operating stably in pebble processing plants in Southeast Asia, metal mines in Africa, and high-grade highway projects in the Middle East and Latin America. Whether facing the humid and rainy conditions of tropical rainforests or the extreme heat of the Middle Eastern deserts, the equipment has demonstrated exceptional environmental adaptability.

( 3 ) International after-sales support: a remote response mechanism that breaks geographical boundaries

To completely eliminate any concerns for overseas customers, Xianglong Machinery has established a "rapid response, digital support" overseas technical service network. We not only provide detailed technical operation guides and maintenance videos in multiple languages, but also offer 24-hour remote technical support and global direct shipping of genuine parts throughout the entire product lifecycle, provided by a team of senior international engineering experts. With extremely high service efficiency and a systematic delivery loop, we have established a professional brand image for " Made in China" in the international market.

6.How do you choose the most suitable equipment for your production line?

Based on its experience configuring thousands of production lines worldwide, XLMAC Machinery has summarized the following three core selection logics.

( 1 ) Three core elements of scientific selection

① Material characteristics: Determine the equipment threshold

Maximum feed size of the crusher : This is the first dividing line between PE standard jaw crushers and PEX fine jaw crushers. If your raw material is generally larger than 250mm (such as raw blocks mined by blasting), you must first choose a large-diameter PE series crusher for coarse crushing. If the raw material is mostly small to medium-sized river pebbles, waste rock, or material that has been preliminarily broken down in the previous process (less than 250mm ), then you should directly consider a PEX fine jaw crusher.

Physical properties: When dealing with high-hardness and highly abrasive materials such as granite and basalt, both jaw crushers, based on the compression principle, can significantly reduce the overall wear of wear-resistant parts compared to impact crushers.

② Production demand: Determine capacity matching

The production line's configuration emphasizes "throughput and output balance." Standard jaw crushers focus on the high-throughput primary crushing stage, quickly transforming large pieces of material into semi-finished products. Fine jaw crushers, on the other hand, prioritize the frequency of impacts per unit time and the fineness of the output. When configuring the entire line, it is essential to ensure that the discharge speed of the upstream equipment is precisely matched with the processing capacity of the downstream fine jaw crusher to avoid capacity bottlenecks such as "material blockage in the upstream and material shortage in the downstream."

③ Return on Investment (ROI): Optimize initial and operating costs

In many small and medium-sized sand and gravel projects or processing lines for medium-hardness materials, while cone crushers offer good particle shape, their high initial installation costs and complex maintenance often prolong the capital recovery period. In such cases, choosing Xianglong Machinery's PEX fine jaw crusher as a secondary crusher can reduce the overall equipment investment cost by approximately 30%-50% while ensuring uniform output particle shape , making it a cost-effective solution for achieving rapid profitability.

( 2 ) Exclusive customization service

As a globally trusted supplier of crushing solutions, XLMAC Machinery supports customized machine models and complete production line services to meet the diverse production needs of its customers . Based on the customer's on-site material hardness, feed size, capacity requirements, and finished product standards, XLMAC Machinery can precisely match coarse and fine jaw crushers with feeders, screening equipment, and conveying equipment to create an integrated crushing production line .

We cordially invite you to provide specific details regarding your material type, feed particle size, and target hourly output requirements. Xianglong Machinery's team of senior technical engineers will provide you with a one-on-one professional technical assessment and, free of charge, tailor a comprehensive crushing production line solution covering equipment selection, infrastructure planning, and process flow diagrams, helping you unlock greater commercial value for your mining assets.
