Types of Stone Crushers: Jaw Crusher, Cone Crusher, Impact Crusher and More

In the global aggregates production, mining processing, infrastructure construction and construction waste recycling industries, stone crushing equipment acts as core host machinery directly determining production efficiency, finished aggregate quality, daily operation cost and overall investment return. As a specialized manufacturer focusing on independent R&D, integrated manufacturing and global equipment supply of crushing and screening systems, XLM Machinery has built a complete serialized product portfolio covering jaw crushers, cone crushers, impact crushers, vertical shaft impact sand makers, hammer crusher, mobile crushing stations and full-set crushing production lines.

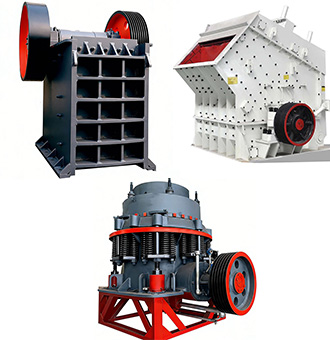

1. Stone Crusher Classification & XLM Machinery Full Product Layout

Stone crushers are industrial machinery that crushes bulk rocks, metal ores, waste concrete and other raw materials into qualified construction aggregates or sand through mechanical extrusion, impact and grinding force. Classification standards cover crushing mechanical principle, processing stage, mobility and application scenarios. Adhering to the core design philosophy of high efficiency, energy conservation, long service life and easy maintenance, XLM Machinery has standardized a complete equipment system covering primary coarse crushing, secondary medium-fine crushing, tertiary sand shaping and mobile on-site crushing to address soft, medium-hard, hard and ultra-hard raw material processing demands.

1.1 Core Classification Standards of Crushing Equipment

1. By crushing force principle: Compression crushers (jaw, cone crusher); impact crushers ( impact, VSI sand maker, hammer crusher)
2. By processing stage: Primary coarse crusher; secondary medium crusher; tertiary fine shaping & sand making equipment
3. By mobility: Fixed stationary crushers; wheeled mobile crushing station; tracked self-propelled mobile crushing station
4. By industry use: Mine ore crushing equipment; quarry aggregate machinery; construction waste recycling crushers; road & water conservancy engineering dedicated crushers

1.2 XLM Machinery Serialized Crusher Product Matrix

All core load-bearing components of XLM crushers adopt high-strength alloy steel casting and precision heat treatment, while vulnerable wear parts use high-manganese and high-chromium composite wear-resistant materials to guarantee stable continuous operation under heavy load and harsh open-air working conditions. The following chapters analyze each core crusher type combined with XLM’s exclusive technical optimizations and real-site operation characteristics.

2. Jaw Crusher: Standard Core Equipment for Primary Coarse Crushing

2.1 Product Positioning & Industry Application Value

Known as the "tiger mouth" in the crushing industry, jaw crusher remains the most widely adopted primary coarse crushing device. It crushes oversized bulk raw materials via reciprocating extrusion between fixed jaw plate and movable jaw plate, acting as the front-end feeding gateway of the whole crushing line. The stability, maximum feeding size and processing capacity of jaw crushers directly restrict the throughput of all downstream crushing and screening equipment.

XLM optimizes traditional jaw crusher structures with deep V-shaped crushing cavity, enlarged crushing ratio and stronger foreign matter tolerance. PE series large jaw crushers target heavy mine primary crushing, while PEX fine jaw crushers support secondary small-size coarse processing, fully covering small, medium and large-scale production line demands.

2.2 Working Principle of XLM Self-Developed Jaw Crusher

XLM jaw crusher relies on eccentric shaft rotary driving to drive movable jaw periodic reciprocating movement, dividing the full crushing cycle into four standardized stages:

1. Feeding stage: Oversized raw materials fall into the V-shaped deep crushing cavity from the top feeding port with auxiliary feeding from vibrating feeder;
2. Extrusion crushing stroke: The eccentric shaft pushes movable jaw close to fixed jaw; materials are split and crushed under combined extrusion, shearing and bending force;
3. Discharge stroke: When movable jaw retreats, qualified broken stones fall out from the bottom discharge opening under gravity;
4. Energy balancing operation: Heavy flywheels store mechanical energy during jaw return stroke to balance load fluctuation and avoid motor overload sudden shutdown.

A safety toggle plate is standard fitted for all XLM jaw crushers as mechanical overload protection. If unbreakable iron blocks or ultra-hard foreign objects enter the crushing cavity, the toggle plate fractures first to protect expensive eccentric shaft, main frame and bearing components, significantly cutting equipment maintenance loss and downtime risk.

2.3 Exclusive Structural Advantages of XLM Jaw Crusher

• Dead-zone-free deep V crushing cavity design eliminates material accumulation and blockage, lifting overall processing efficiency;
• Forged alloy steel eccentric shaft processed via multi-step precision machining and tempering heat treatment with powerful torsion resistance;
• Custom high-manganese jaw plates with 30% longer service life than ordinary market wear parts;
• Optional hydraulic discharge port adjustment device, supporting quick particle size adjustment from 10mm to 300mm;
• Compact integral frame, fewer moving parts, low foundation space occupation and convenient field installation;
• Wide environmental adaptability, stable operation in high altitude, low temperature and high-dust open mines.

2.4 Typical XLM Jaw Crusher Models & Selection Rules

Representative models include PE400×600 for small recycling stations, PE600×900 as medium quarry standard configuration, PE900×1200 for large mine primary crushing and PEX250×1200 fine jaw crusher for secondary small particle processing. When selecting jaw crusher models, customers must first confirm the maximum feeding size of raw ore, match hourly capacity with planned output, and reserve proper discharge size space for downstream secondary crushing equipment. XLM Machinery provides free site survey and production flow layout design for all cooperative clients.

2.5 Main Applicable Scenarios

Metal mine primary ore crushing, granite and basalt quarry coarse processing, urban construction waste recycling, highway subgrade stone on-site processing and chemical industry raw material size reduction all rely on XLM jaw crushers as primary processing equipment. With simple structure, low failure rate and low overall investment cost, jaw crushers become essential configuration for all new crushing projects.

3. Cone Crusher: Medium-Fine Crushing Equipment for High-Hard Abrasive Rock

3.1 Product Positioning

Cone crusher belongs to compression-type medium-fine crushing machinery, specially developed for ultra-hard, high-abrasion raw materials like granite, basalt and river pebble. Different from single-point extrusion of jaw crushers, XLM cone crushers adopt inter-particle layered crushing mechanism, realizing full-cavity continuous material grinding with uniform cubic finished aggregate, fewer flaky particles and lower unit wear consumption.

XLM supplies two mainstream cone crusher series: cost-effective spring cone crushers for small-medium quarries and intelligent single/double cylinder hydraulic cone crushers for large-scale high-standard aggregate production lines. Hydraulic cone crushers integrate automatic discharge adjustment, foreign matter ejection and cavity cleaning functions to reduce manual operation intensity.

3.2 Working Mechanism & Hydraulic Protection System

The motor drives eccentric sleeve rotary movement, which pushes the movable cone to perform periodic gyration swing inside fixed cone liner. When movable cone approaches fixed cone, materials are layered squeezed and broken; when separated, crushed aggregate falls downward. Once metal foreign objects enter the cavity, the hydraulic oil cylinder automatically lifts the movable cone to discharge foreign bodies without stopping the whole production line, then resets to standard working position automatically after block removal, minimizing production interruption time.

3.3 XLM Exclusive Technical Optimizations

• Classified crushing cavity molds (coarse, medium, fine) for layered inter-particle crushing to reduce wear loss;
• Integrated PLC hydraulic intelligent control system supporting one-click finished particle size modification;
• High-precision heavy-load bearing matching forged eccentric mechanism, stable low-noise long-hour operation;
• Uniform cubic aggregate output, fully meeting highway, high-speed rail and hydraulic engineering high-grade aggregate standards;
• Higher hourly throughput with lower power consumption compared with traditional old-fashioned cone crushers.

3.4 Application Scope

XLM hydraulic cone crushers are mainly used for secondary and tertiary crushing of hard rock quarries, metal mineral fine grinding, high-standard road aggregate production and pre-crushing before VSI sand making equipment. For projects processing high-abrasion raw materials, hydraulic cone crushers achieve lower long-term comprehensive operating costs than impact crushers.

4.  Impact Crusher : Crushing & Shaping Equipment for Medium-Soft Materials

4.1 Core Advantages & Positioning

PF/PFV series impact crushers manufactured by XLM Machinery are typical impact crushing machinery, utilizing high-speed rotor blow bars to throw raw materials onto impact plates for repeated collision crushing. This equipment features ultra-high crushing ratio and outstanding aggregate shaping performance, best suited for medium-soft brittle raw materials including limestone, dolomite and waste recycled concrete.

Compared with cone crushers, impact crushers have simpler process configuration, lower equipment investment and stronger tolerance to slightly wet sticky materials without easy cavity blockage, widely applied in construction waste resource recovery projects.

4.2 Working Principle & Maintenance Optimization

Raw materials collide with high-chromium blow bars on high-speed rotating rotor to gain kinetic energy, then repeatedly strike adjustable impact plates for multi-stage crushing. The gap between impact plate and rotor directly controls finished aggregate particle size. XLM equips all PFV large impact crushers with hydraulic flip cover device; maintenance staff can open the upper crushing cavity within several minutes to replace blow bars and clear residual materials, greatly shortening routine maintenance time.

4.3 Main Application Scenarios

Limestone quarry aggregate production, urban construction waste on-site crushing, commercial concrete cubic aggregate processing, asphalt pavement raw material shaping and low-hardness industrial material crushing are core applicable fields of XLM impact crushers. Finished aggregates processed by impact crushers present perfect cubic shape without excessive needle flake particles, satisfying building mortar and pavement engineering quality standards.

5. VSI Vertical Shaft Impact Crusher: Specialized Manufactured Sand Making Machine

5.1 Industry Value of VSI Sand Maker

With strict national restrictions on natural river sand mining, high-quality manufactured sand becomes indispensable raw material for modern concrete and infrastructure construction. XLM VSI vertical shaft impact crusher is dedicated sand shaping equipment adopting dual switchable crushing modes: rock-on-rock and rock-on-iron.

Rock-on-rock mode creates material lining inside crushing cavity to reduce abrasion on metal wear parts, ideal for hard rock sand production; rock-on-iron mode delivers higher crushing efficiency for medium-soft limestone raw materials. Finished manufactured sand produced by XLM VSI machines owns reasonable particle gradation with fineness modulus controlled between 2.6–3.0, fully compliant with national construction sand specifications.

5.4 Key Technical Features

• Dual crushing mode freely switchable to match different rock hardness;
• Optimized high-throughput rotor structure, sand production rate reaches 55%–65%;
• Automatic constant-temperature circulating lubrication system for rotor bearings to lower failure rate;
• Reserved dust removal interface to connect environmental dust collectors, meeting emission control standards;
• Adjustable rotor speed to flexibly modify sand fineness modulus for different engineering demands.

Main usage covers high-quality manufactured sand production, hard rock aggregate secondary shaping, mine tailings resource utilization and hydropower project special aggregate processing.

6. Mobile Crushing Station: Flexible Integrated On-Site Crushing Equipment

6.1 Two Main Series: Tracked & Wheeled Mobile Station

Fixed crushing lines require concrete foundation pouring with long installation cycles, while XLM mobile crushing stations integrate feeding, crushing, screening and conveying systems onto movable chassis to realize on-site raw material processing, eliminating long-distance stone transportation cost.

Tracked Hydraulic Mobile Station

Hydraulic self-propelled crawler chassis with low ground pressure, suitable for mountain mines, slope operation and muddy complex terrain. Equipped with wireless remote control system for free walking without truck traction, deployed and put into production within half a day after arriving at working sites.

Wheeled Trailer Mobile Station

Truck-traction tire chassis with lower manufacturing cost, fast highway transfer speed, suitable for urban demolition waste disposal, short-cycle road construction and flat-terrain temporary crushing projects.


6.2 General Technical Advantages of XLM Mobile Crushing Equipment

• No fixed foundation construction required, greatly cutting early civil engineering investment;
• Integrated dust suppression and noise reduction device, satisfying urban environmental protection inspection;
• PLC centralized intelligent control with real-time operation parameter monitoring and automatic fault diagnosis;
• On-site crushing reduces aggregate transportation expense by 20%–30% compared with fixed off-site crushing plants.

7. Hammer Crusher: One-Step Crushing Machinery for Soft Brittle Materials

PC series heavy hammer crushers produced by XLM Machinery rely on high-speed swinging hammer heads to impact and grind raw materials, realizing one-time crushing from large bulk stones to finished products without multi-stage equipment configuration. With extremely low equipment procurement cost and simple operation flow, hammer crushers fit small-scale coal mines, cement plants and gypsum processing factories.


Limited by mechanical principle, hammer crushers cannot process high-hard abrasive rock; long-term processing of granite or basalt will lead to rapid hammer head wear and frequent replacement costs. Customers processing hard raw materials should select jaw + cone combined crushing lines instead.

8. Scientific Crusher Selection Guide from XLM Engineering Team

Improper equipment matching will cause insufficient production capacity, unqualified finished aggregate quality or excessively high wear part consumption. Summarized from thousands of global project cases, XLM sorts out standardized selection rules for customer reference:

8.1 Select Equipment According to Raw Material Hardness

• Ultra-hard rock (granite, basalt, iron ore): Jaw primary crushing + hydraulic cone secondary crushing + VSI sand shaping;
• Medium-soft rock (limestone, dolomite):  Impact crusher single-line crushing and shaping;
• Soft brittle materials (coal, gypsum): PC heavy hammer crusher one-step forming;
• Waste concrete construction waste: Impact crusher or mobile integrated impact crushing station.

8.2 Select Equipment According to Processing Stage

Primary coarse crushing prioritizes jaw crusher; secondary medium crushing chooses cone crusher (hard rock) or impact crusher (soft rock); tertiary sand making and fine shaping adopt VSI vertical shaft impact sand maker.

8.3 Select Equipment According to Mobility Requirement

Long-term fixed quarry production uses stationary full-set crushing lines; multi-site short-cycle projects adopt wheeled mobile stations; mountain complex terrain mining selects tracked hydraulic mobile crushing equipment.

8.4 Select Equipment According to Investment Budget & Operation Cycle

Large-scale long-life aggregate bases configure full automatic jaw-cone-VSI lines for low long-term operating cost; small temporary projects with limited funds can choose single jaw or impact crusher; short-term demolition waste recovery prioritizes mobile crushing stations without civil foundation cost.

9. XLM Machinery Core Manufacturing & Service Competitiveness

9.1 Production & R&D Strength

XLM Machinery owns a standardized modern production base equipped with CNC machining centers,  professional heat treatment workshops. All finished crushers implement full-process quality inspection, with 100% testing for eccentric shafts, liners, rotors and other core components before factory delivery. The internal R&D team holds multiple independent patents on crushing cavity optimization and hydraulic control technology, continuously upgrading product efficiency and wear resistance to differentiate from generic peer products on the market.

9.2 Full-Cycle Global Service System

1. Pre-sales: Free site survey, production line layout drawing, model matching and investment return benefit analysis;
2. In-sales: Customized equipment production, scheduled delivery, overseas engineer on-site installation and commissioning;
3. After-sales: Global spare parts supply warehouse, online technical support, regular remote operation training;
4. Value-added service: Free staff operation and maintenance training to eliminate misoperation damage risks.

XLM crushing equipment and complete production lines have been exported to over 80 countries and regions across Asia, Africa, Europe and South America, accumulating massive practical engineering cases in mine exploitation, highway construction and urban waste recycling fields.

10. Conclusion

Different types of stone crushers bear differentiated functional positioning in aggregate and mineral processing production lines. Jaw crusher remains the irreplaceable primary coarse crushing core for all hard raw materials; hydraulic cone crusher provides stable medium-fine processing for high-abrasion rock with excellent grain shape output; horizontal impact crusher realizes low-cost integrated crushing and shaping for medium-soft stone and recycled construction waste; VSI vertical shaft impact crusher is exclusive equipment for high-standard manufactured sand production; mobile crushing stations solve flexible on-site processing demands for short-cycle and complex-terrain projects; hammer crusher meets low-budget one-step crushing requirements for soft brittle industrial raw materials.

As a professional original stone crusher manufacturer, XLM Machinery delivers full-series crushing machinery and tailor-made complete production line solutions to global industrial clients. Driven by independent technical research, strict quality control, energy-efficient product design and comprehensive after-sales service network, XLM Machinery helps all partners reduce comprehensive production costs, lift hourly processing capacity and maximize project economic benefits. No matter customers need stationary large-scale aggregate production lines or compact mobile crushing equipment for urban waste recycling, XLM technical team can design targeted matching schemes to build long-term stable cooperative partnerships with worldwide investors.
