1. Basic Overview of Jaw Crusher

1.1 Definition and Core Position

A jaw crusher is a compression-type crushing machine that simulates the movement of animal jaws. It uses the relative motion between the fixed jaw and the movable jaw to form a V-shaped crushing chamber, and crushes large bulk materials into small and medium-sized materials through extrusion, bending and splitting forces. As the first link of material crushing, the jaw crusher undertakes the task of primary crushing of raw materials, and its performance directly determines the processing capacity and operation stability of the entire production line.

In the modern crushing process, the jaw crusher is not only a single crushing equipment, but also a core node connecting raw material feeding, secondary crushing and finished product screening. XLM jaw crushers, with their high strength, high efficiency and high adaptability, have become the preferred primary crushing solution for hard rock, ore, construction waste and other materials, and are widely used in large mines, centralized quarries, mobile crushing stations and industrial and mining enterprises.

1.2 Development History and Technical Evolution

The prototype of the jaw crusher was born in the mid-19th century. After more than 160 years of development, it has experienced technological iterations from double-toggle Blake type to single-toggle overhead eccentric type, from pure mechanical structure to electromechanical-hydraulic integration, from fixed type to mobile modularization. The core performance such as crushing ratio, processing capacity, energy saving and environmental protection has been continuously improved.

XLM Machinery has always kept pace with the global cutting-edge technology, absorbed the advantages of international high-end jaw crusher technology, and carried out targeted optimization and innovation for domestic and foreign working conditions. Our R&D team has optimized the crushing chamber structure, transmission system, wear-resistant materials and intelligent control system, so that XLM jaw crushers have achieved breakthroughs in energy saving, wear resistance and stability, and formed a unique technical system that is different from ordinary manufacturers.

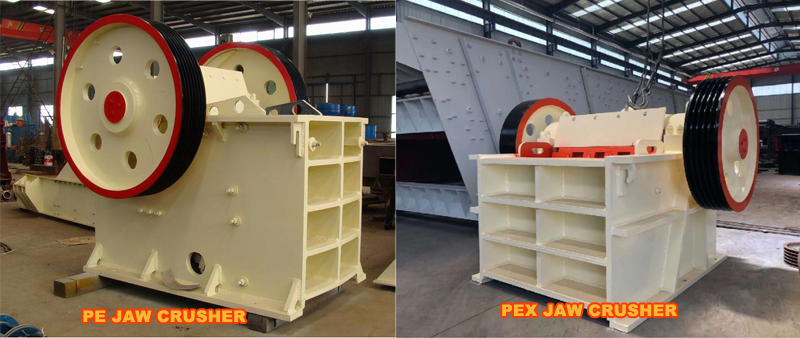

1.3 Classification of Jaw Crushers

According to different classification criteria, jaw crushers can be divided into multiple categories, and XLM Machinery provides targeted products for different application scenarios:

• By structure: Single-toggle jaw crusher (mainstream model, compact structure, high efficiency) and double-toggle jaw crusher (super heavy load, suitable for extra-hard materials);

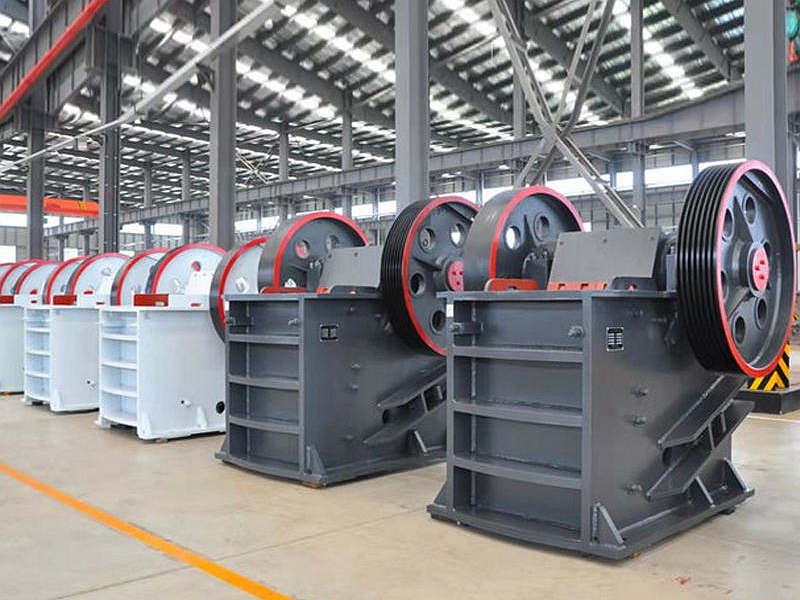

• By application: Primary jaw crusher (PE series, large feed opening, high capacity, for coarse crushing) and fine jaw crusher (PEX series, small discharge opening, high crushing ratio, for medium and fine crushing);
• By installation form: Stationary jaw crusher (fixed foundation, suitable for long-term centralized production) and mobile jaw crusher (modular design, integrated with feeding and conveying, suitable for mobile operation and scattered sites);
• By driving mode: Motor-driven jaw crusher (stable power, suitable for fixed sites with power supply) and diesel-driven jaw crusher (flexible and convenient, suitable for field operation without power grid).

XLM full-series jaw crushers cover all mainstream categories, and can provide customized models according to user's material properties, capacity requirements and site conditions, fully meeting diversified application needs.

2. Working Principle and Core Structure of XLM Jaw Crusher

2.1 Core Working Principle

XLM jaw crusher adopts the mature single-toggle overhead eccentric working principle, and the whole crushing process is efficient and stable:

1. Feeding stage: Materials enter the V-shaped deep crushing chamber from the top feeding hopper without dead zone, ensuring full contact between materials and jaw plates;
2. Crushing stage: The motor drives the belt pulley and flywheel to rotate, driving the eccentric shaft to move, so that the movable jaw makes periodic reciprocating motion relative to the fixed jaw. When the movable jaw approaches the fixed jaw, materials are squeezed, bent and split, and large materials are broken into small pieces;
3. Discharging stage: When the movable jaw moves away from the fixed jaw, the crushed materials are discharged from the bottom discharge opening under the action of gravity, completing a crushing cycle;
4. Continuous operation: The above process is repeated continuously to realize continuous crushing and discharging of materials.

The optimized motion track of XLM jaw crusher's movable jaw makes the crushing force more uniform, the material flow more smooth, and effectively avoids material blockage and repeated crushing, improving crushing efficiency and reducing energy consumption.

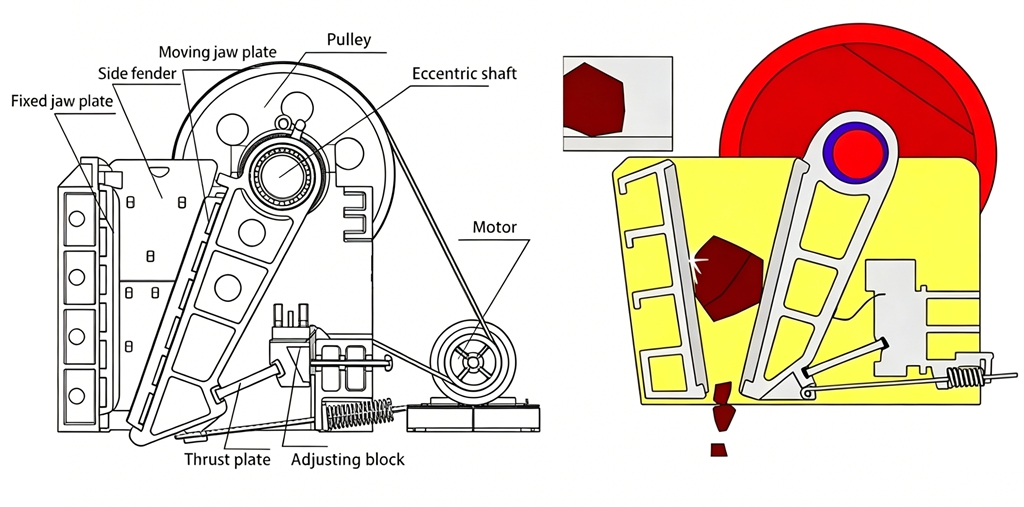

2.2 Core Components and XLM Unique Design

The performance of the jaw crusher depends on the quality and design of core components. XLM Machinery adopts high-standard manufacturing technology and unique structural design for each component, ensuring the overall reliability and service life of the equipment:

2.2.1 Frame

The frame is the load-bearing foundation of the jaw crusher, bearing huge crushing force and impact force. XLM jaw crusher frame is made of high-strength carbon steel welded structure or high-quality cast steel, with finite element analysis optimization, high rigidity, good toughness, and can withstand the impact of extra-hard materials without deformation and cracking. The integrated molding process reduces the number of welding joints, improves the overall stability, and adapts to long-term heavy-load operation.

2.2.2 Crushing System (Fixed Jaw, Movable Jaw, Jaw Plate)

• Fixed jaw and movable jaw: Adopt high-strength steel structure, precise machining, good concentricity and stable operation;
• Jaw plate: The core wear-resistant component, XLM uses high-manganese steel (Mn13Cr2) with added chromium alloy, which has high wear resistance and impact resistance. The unique tooth profile design increases the biting force of materials, avoids material slipping, and improves crushing efficiency. The jaw plate is symmetrically designed, which can be reversed up and down after wear, doubling the service life and reducing the cost of wearing parts.

2.2.3 Transmission System (Eccentric Shaft, Flywheel, Belt Pulley)

Eccentric shaft forged from high-quality alloy steel, after precision machining and heat treatment, it has high bending and torsion resistance, stable operation and low failure rate. Flywheel and belt pulley adopt optimized moment of inertia design, which can store and release energy during operation, balance the load fluctuation of the motor, reduce the motor power loss, realize smooth starting and stable operation, and avoid stalling under heavy load.

2.2.4 Adjustment System

XLM jaw crusher adopts wedge-type or gasket-type discharge opening adjustment device, with simple operation and large adjustment range. The wedge-type adjustment can realize stepless adjustment of the discharge opening through hydraulic or manual operation, and the adjustment accuracy is high; the gasket-type adjustment is stable and reliable, suitable for fixed discharge size requirements. The discharge opening adjustment range of XLM jaw crusher is 10-300mm, which can meet the needs of different finished product particle sizes.

2.2.5 Safety System

The toggle plate is the core safety component of XLM jaw crusher, which adopts the design of sacrificial protection. When unbreakable materials (such as iron blocks) enter the crushing chamber, the toggle plate breaks automatically, cutting off the power transmission path, protecting the frame, eccentric shaft and other expensive components from damage, reducing equipment failure loss and maintenance cost. In addition, XLM is equipped with overload protection, overheating alarm and other devices to further improve the operation safety.

2.2.6 Lubrication System

XLM jaw crusher is equipped with a centralized lubrication system, which is safe and reliable, with smooth oil circuit and sufficient lubrication. The lubrication points are centrally arranged, easy to operate, reducing the difficulty of daily maintenance. The lubrication system can effectively reduce the friction between bearings, eccentric shaft and other moving components, reduce temperature rise, extend the service life of moving parts, and ensure long-term stable operation of the equipment.

2.3 Technical Advantages of XLM Jaw Crusher

• Deep chamber without dead zone: processing capacity increased by 15%-20% vs traditional jaw crusher;
• High crushing ratio: single-stage crushing ratio up to 6:1, less secondary crushing equipment investment;
• Energy saving & low consumption: single machine energy saving 15%-30%;
• High stability: continuous operation rate over 95%, adapt to harsh mining & quarry conditions;
• Humanized maintenance structure, short downtime for wear parts replacement;
• Wide material adaptability: crush raw materials with compressive strength ≤320MPa.

3. Performance Parameters and Model Selection of XLM Jaw Crusher

3.1 Core Performance Parameters Range

• Feed opening size: 150×250mm - 1500×1800mm;
• Maximum feed size: 120mm - 1200mm;
• Discharge opening adjustment range: 10mm - 300mm;
• Processing capacity: 1t/h - 1100t/h;
• Motor power: 5.5kW - 280kW.

3.2 Standard Model Selection Steps

1. Confirm raw material hardness, abrasiveness, moisture content and material type;
2. Calculate required hourly output, reserve 10%-15% capacity margin;
3. Match maximum feed size and target finished discharge particle size;
4. Judge site type: fixed station or mobile construction waste site, power supply condition;
5. Full lifecycle cost accounting to select the optimal jaw crusher model.

3.3 Typical XLM Jaw Crusher Model Matching Scenarios

4. Application Fields of XLM Jaw Crusher

4.1 Mining Industry

Used for primary crushing of iron ore, copper ore, gold ore, phosphate ore and non-metallic ores. XLM heavy-duty jaw crusher reinforced frame and high wear-resistant jaw plates adapt to long-term high-hardness ore impact, providing stable feeding material for grinding and beneficiation process.

4.2 Quarry & Aggregate Production

The largest application market of jaw crusher. PE primary jaw crusher crushes granite, basalt, limestone for highway, railway, bridge construction aggregate. Uniform discharge particle size improves finished aggregate qualification rate.

4.3 Construction Waste Recycling

XLM mobile jaw crusher directly enters demolition site to crush waste concrete, brick, stone into recycled aggregate, save long-distance transportation cost, anti-blocking design adapts mixed impurities including steel bar.

4.4 Metallurgy, Chemical & Refractory Industry

Crush limestone, coke, mineral slag, refractory raw materials. Optimized corrosion-resistant internal structure adapts special workshop environment with stable particle size control.

4.5 Infrastructure On-site Crushing

Rapid deployment for water conservancy, airport, road project temporary aggregate production, flexible mobile unit shortens project construction cycle.

5. Installation, Commissioning and Operation of XLM Jaw Crusher

5.1 Standard Installation Process

Stationary jaw crusher needs reinforced concrete foundation with accurate embedded anchor bolts. Installation steps include frame hoisting & leveling, eccentric shaft & bearing assembly, jaw plate & toggle plate fitting, motor & transmission belt installation, lubrication pipeline connection, full fastening inspection.

5.2 No-load & Load Commissioning Rules

• No-load test run 2-4 hours, bearing temperature rise ≤40°C, max temperature below 70°C, no abnormal vibration & noise;
• Gradual load test run 4-8 hours, feed material from low volume to rated capacity, adjust discharge opening to reach target particle size;
• Record running current, capacity, vibration data to form official commissioning report.

5.3 Standard Operating Procedures

Pre-operation Inspection

Check bolt fastening, lubricating oil volume, belt wear, foreign objects inside crushing chamber, safety protection devices and electrical circuit.

Start & Feeding Regulation

Start sequence: discharge conveyor → jaw crusher → vibrating feeder. Uniform continuous feeding is required, strictly forbid iron blocks, steel into crushing chamber, install magnetic iron remover for high impurity raw materials.

Shutdown Standard

Stop feeder first, wait all materials inside crushing chamber fully discharged before stopping crusher and conveyor, clean equipment and record daily operation data.

6. Maintenance and Troubleshooting of XLM Jaw Crusher

6.1 Four-level Preventive Maintenance Cycle

1. Daily per shift maintenance: clean equipment, check bearing temperature, lubrication leakage, bolt tightness;
2. Weekly maintenance: supplement lubricating grease, adjust belt tension, inspect jaw plate & toggle plate abrasion;
3. Monthly maintenance: replace bearing lubricant, reverse worn jaw plate, inspect frame welding crack;
4. Annual overhaul: full disassembly inspection of eccentric shaft, bearing, frame, replace all severely worn parts, anti-rust treatment.

6.2 Common Faults & Targeted Solutions

XLM Machinery provides 24-hour global online technical support, overseas after-sales engineers available for on-site troubleshooting to reduce production downtime loss.

7. Wear-resistant Parts and Spare Parts of XLM Jaw Crusher

7.1 Core Original Wear Parts

• Mn13Cr2 alloy high manganese jaw plate (reversible double-sided use);
• Sacrificial cast steel toggle safety plate;
• High tensile wear-resistant transmission belt;
• High precision imported matched bearing assembly.

7.2 Advantages of XLM Factory Original Spare Parts

100% matched XLM jaw crusher model parameters, higher wear resistance service life than generic aftermarket parts, global spare parts warehouse fast delivery, avoid equipment performance degradation caused by inferior accessories. We recommend customers stock core wear parts to prevent unexpected production shutdown.

8. Total Cost of Ownership (TCO) and Value Advantages of XLM Jaw Crusher

8.1 TCO Composition

Total cost includes initial equipment investment, monthly power consumption cost, wear parts replacement cost, regular maintenance labor cost, unplanned downtime economic loss and residual scrap value after service life expires.

8.2 Long-term Cost Advantages of XLM Jaw Crusher

Field data shows XLM jaw crusher total lifecycle cost is 20%-30% lower than peer ordinary jaw crusher: energy-saving structure cuts monthly electricity expense, long-life alloy jaw plate reduces replacement frequency, ultra-low failure rate greatly cuts downtime loss, equipment service life reaches 15-20 years under standardized operation.

8.3 Multi-dimensional Core Value for End Users

• Stable continuous production to guarantee aggregate delivery schedule;
• Uniform finished particle size meets international highway & mining material standards;
• Low noise & low dust design complies with global environmental protection regulations;
• Customized crushing line solution based on actual site working condition;
• One-stop full lifecycle service covering pre-sales, production, after-sales & spare parts supply.

9. XLM Machinery: Brand Strength and Service System

9.1 Factory Brand Qualification

XLM Machinery (Xianglong Machinery) is national high-tech crushing equipment manufacturer, owning independent jaw crusher R&D,  quality system certification, CE EU safety certification. machining workshop, professional material performance testing laboratory, strict raw material incoming inspection and finished machine performance test procedure before delivery. Products exported to over 80 countries across Southeast Asia, Africa, Europe, Middle East, Latin America.

9.2 Full Lifecycle One-stop Service System

1. Pre-sales free service: Engineer on-site survey, free model selection calculation, crushing process layout drawing;
2. In-sales support: Real-time production progress tracking, detailed English operation manual, pre-delivery equipment running test;
3. After-sales guarantee: 24h online technical consultation, overseas engineer on-site installation & operator training, regular customer return visit;
4. Global spare parts supply network: Fast delivery of all XLM original wear-resistant spare parts worldwide;
5. Equipment technical upgrade service: Retrofitting old jaw crusher to improve capacity & energy efficiency.

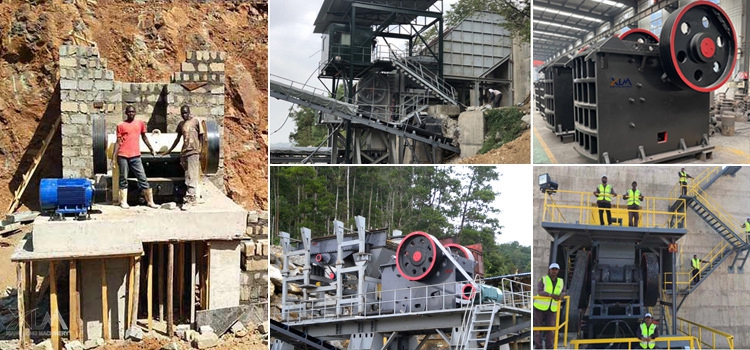

9.3 Global Representative Project Cases

• Southeast Asia Granite Quarry: PE1200×1500 large jaw crusher, stable 600t/h output continuous operation for 5 years;
• European Construction Waste Recycling Station: XLM mobile jaw unit annual processing 500,000 tons waste concrete;
• Africa Iron Ore Mine: Heavy duty jaw crusher crushing high-hardness raw ore, adapt remote harsh field environment;
• Domestic Expressway Aggregate Line: PE+PEX two-stage jaw crushing system, qualified finished aggregate for road construction.

10. Development Trend of Jaw Crusher and XLM Technology Layout

10.1 Global Jaw Crusher Industry Main Trends

• Intelligent IoT remote monitoring, automatic discharge gap adjustment & fault early warning;
• Deep energy-saving structure design, low carbon green crushing equipment;
• Modular integrated mobile crushing unit for scattered, temporary construction sites;
• Large-scale high-capacity jaw crusher for super-large open-pit mines;
• Big data predictive intelligent maintenance to eliminate unplanned shutdown.

10.2 XLM Long-term Technical R&D Layout

XLM R&D team continuously invests in intelligent jaw crusher control system, new high wear-resistant alloy materials, optimized low-energy crushing chamber structure, expanded multi-functional mobile jaw crusher product line, environmental noise & dust reduction structure upgrading, to match future global green mining and intelligent factory demand.

11. Conclusion

The jaw crusher, as the core primary crushing equipment, plays a vital role in global material processing. Selecting a high-quality jaw crusher is the key to improving production efficiency, reducing operating costs and ensuring return on investment.

XLM Machinery, with years of technical accumulation and manufacturing experience, provides global users with full-series, high-performance jaw crushers and full-life-cycle services. Our products integrate advanced design, high-quality materials and strict manufacturing, with high efficiency, energy saving, reliability and durability, and are widely used in various fields.

This ultimate guide comprehensively introduces the basic knowledge, working principle, model selection, operation, maintenance, cost control and other aspects of the jaw crusher, closely combining the technical characteristics and application advantages of XLM jaw crushers. We hope this guide can help users fully understand the jaw crusher, select the right equipment, and maximize production benefits.

XLM Machinery will always adhere to the original intention of "quality first, customer foremost", continue to innovate and develop, and work with global users to create a better future for the crushing industry. If you have any needs for jaw crushers or crushing solutions, please feel free to contact XLM Machinery, and we will serve you wholeheartedly!
