For high-quality aggregates, should you choose an impact crusher or a cone crusher? Industry experts teach you how to select the right type
In modern mining and high-quality aggregate production, the finished product's "material profile" directly determines the project's profit margin and market competitiveness. The core factor determining the quality of the material profile lies in the scientific selection of primary and secondary crushing equipment. Addressing the industry debate regarding the production of high-quality aggregates using impact crushers and cone crushers, XLM Machinery provides an in-depth analysis of the fundamental differences between the two, starting from their underlying crushing mechanisms.
1.Counter-attack crusher vs. cone crusher: differences in core working principles and high-material-grade "genes"
The core advantage of the impact crusher lies in its impact crushing mechanism. After entering the crushing chamber, the material is violently impacted by the high-speed rotating hammers and thrown at extremely high speed towards the impact liner for a secondary impact, followed by high-frequency, intense collisions between the materials.

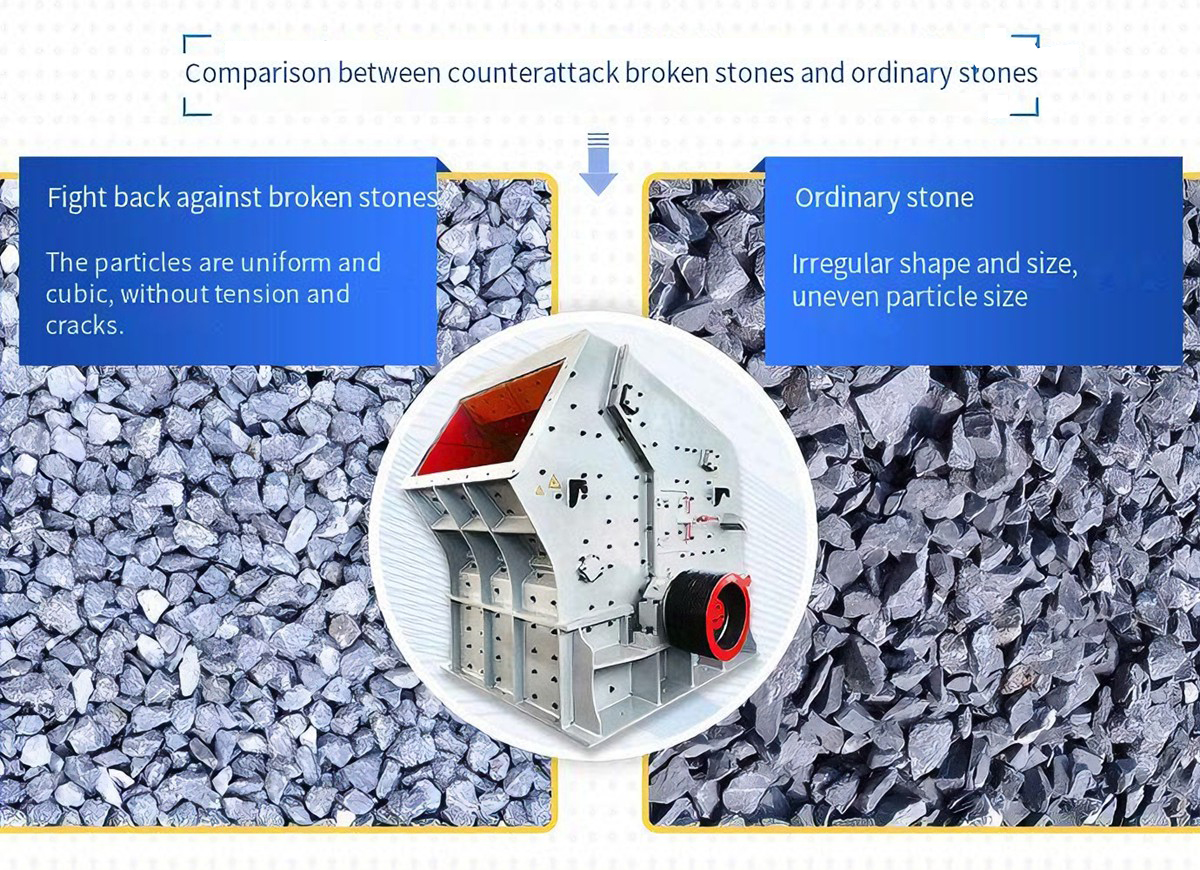

This combined "stone-on-stone" and "stone-on-iron" action causes the material to tend to fracture along its natural crystal joint planes. This mechanism endows the impact crusher with unparalleled particle shape characteristics:
Multi-faceted cubic: The finished particles are full and have moderately sharp surface edges.
Extremely low needle-like and flaky ratio: Naturally eliminates strip-shaped and flaky materials, eliminating the need for secondary shaping
For medium-soft materials (such as limestone and construction waste), Xianglong Machinery's optimized impact chamber design maximizes energy transfer, making it the first choice for projects seeking the highest cubic ratio.
Suitable raw materials: Limestone, bluestone, dolomite, construction waste and other medium-soft materials with a Mohs hardness ≤5.

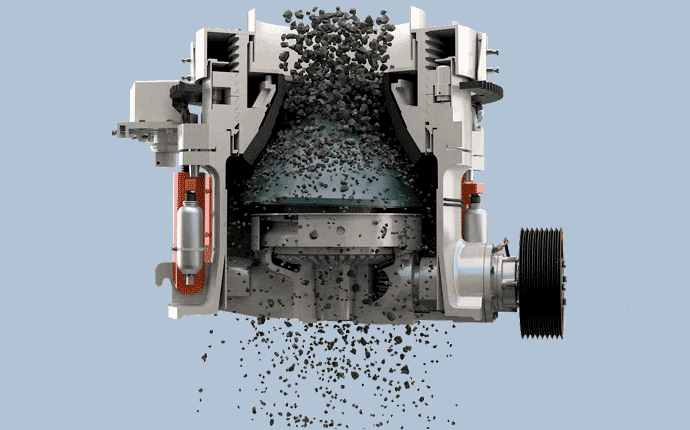

Xianglong Machinery's new generation of multi-cylinder hydraulic cone crushers fully incorporates advanced inter-particle crushing technology. By increasing the oscillation frequency and optimizing the stroke, the material entering the crushing chamber is no longer subjected to single mechanical compression, but instead forms a dense layer:
Material-energy-material compression: Crushing is achieved through the compression and shear forces between materials.
Significantly improved particle shape: When crushing high-hardness materials such as granite and basalt, the inter-particle compression effect effectively reduces the proportion of needle-like and flaky particles, resulting in a finished product with good gradation and cubic shape.
Suitable materials: granite, basalt, river pebbles, diabase and other hard rocks with a Mohs hardness of ≥6.
Xianglong Selection Recommendation: Impact crushers possess a natural "shaping" capability, allowing for top-tier needle-like and flaky particle control with lower initial investment in medium- and low-hardness materials; while cone crushers, through modern inter-particle compression technology, overcome high-hardness and highly abrasive materials while simultaneously achieving high capacity and excellent particle size output.
2.XLM Machinery-Core Comparison of Cone Crusher and Counterattack Crusher
Comparison of core performance and technical parameters between counter-attack crusher and cone crusherThe following is a comparison of the core capabilities of the two devices in actual production operation..
| Evaluation Dimensions | Impact crusher (XLM-Impact) |
Hydraulic cone crusher (XLM-Cone) |
|---|---|---|
| Maximum feed particle size | Large (ranging from 300mm to 700mm) | Small (generally less than 300mm, depending on the cavity shape) |
| Discharge port adjustment range | It is relatively wide and can be adjusted more flexibly. | Precise fine-tuning relies on a hydraulic system to control the closed edge. |
| Comprehensive processing capabilities (t/h) | Medium to large (suitable for high-yield production of medium-hardness materials) | Extremely high (exhibiting extremely high hourly output in continuous hard rock operations) |
| Installed motor power | At the same output level, the instantaneous energy consumption and peak power are relatively high. | Under the same output, it has more stable power consumption and excellent long-term energy efficiency. |
| Replacement cycle of wear parts | Shorter (the hammer plate wears significantly from impact and needs to be flipped or replaced periodically). | Extremely long (the grinding chamber and crushing chamber are made of high-manganese steel laminated for stress resistance, resulting in a long service life). |
| Overall pass rate of finished products | High (high one-time molding rate, no need for additional shaping circuit) | High (relies on high-frequency lamination, achieving stable gradation through closed-loop screening). |
Two major cost logics behind the parameters
(1). upfront investment（Capex）
The impact crusher is lightweight and has a large feed capacity, resulting in lower coarse crushing costs. It is suitable for short-term, low-asset projects with faster return on investment.
(2). Long-term operating costs（Opex）
For hard rock applications, cone crushers are the preferred choice. Impact crushers suffer from hammer wear and tear, and downtime losses that continuously increase expenses. Cone crushers, on the other hand, have a high degree of automation and a long parts replacement cycle, and the maintenance costs saved within 2-3 years of operation can cover the purchase price difference.
3.Pain Points in Hard Rock Production: How Multi-Cylinder Cone Crusher Solve Particle Shape Problems
XLM Machinery's intelligent multi-cylinder hydraulic cone crusher, designed specifically for hard rock, was created to overcome this industry pain point. Its output efficiency and continuous operation capability under hard rock conditions are redefining the industry standard for hard rock crushing.
Xianglong Machinery's new generation cone crusher achieves a perfect combination of high oscillation frequency and large stroke by optimizing the internal eccentric shaft structureDuring operation, the powerful crushing force acts continuously on the hard rock surface for a very short time, instantly exceeding its compressive strength limit and pulverizing it. This high-energy dynamic design ensures that even when dealing with highly abrasive hard rock, the hourly output of a single machine remains consistently high.
Xianglong Machinery's multi-cylinder cone crusher is equipped with an advanced fully hydraulic intelligent discharge port adjustment system and automatic compensation mechanism..
4.How to make the final selection based on materials, budget, and scale.
1).Examining Material Genes: Rigid Constraints on Hardness and Abrasiveness
For medium to low hardness, non-abrasive materials (such as limestone, bluestone, and dolomite): these materials cause less impact damage to wear-resistant parts. In this case, the Xianglong high-impact crusher should be selected to utilize its powerful impact crushing energy to achieve a high one-time forming rate and extremely low needle-like and flaky particle size, producing top-grade cubic material output.
For high-hardness, highly abrasive hard rocks (such as granite, basalt, and river pebbles): a multi-cylinder hydraulic cone crusher is selected, relying on its high-frequency oscillation and compression mechanism to build an absolute defensive barrier in terms of wear-resistant parts life and continuous throughput capacity.
2).Investment strategy: Balancing capital expenditures (Capex) and operating costs (Opex)
For small or medium-term projects with low asset intensity and quick return on investment: If cash flow is tight in the early stages, or if the project is a short- to medium-term lease, a counter-break production line is a highly cost-effective option. It has lower unit purchase costs, simpler infrastructure requirements, and allows projects to quickly start production and recoup funds with minimal capital expenditure (Capex).
For strategic large-scale mines held for the long term: the evaluation focus should shift to long-term operating costs (Opex). Although cone crushers have a high initial investment, their stable operating energy consumption, extremely low frequency of parts replacement, and highly automated maintenance-free design can completely offset the price difference through savings in electricity and parts costs within a 2 to 3-year operating cycle, becoming increasingly cost-effective over time.
3).Consider production scale: hourly output and level of automation.
Flexible production lines with an hourly output of less than 100 tons: These are typically characterized by dispersed processing locations and short construction periods. The preferred option is the Xianglong mobile impact/cone crushing station, which can be installed and used immediately without electricity or in combination with oil and electricity, greatly enhancing the flexibility of small and medium-sized projects.
Large-scale, modern, intensive mines with an hourly output of 300 to 1000 tons or more have extremely stringent requirements for continuous and stable equipment operation (UPTIME). These mines must utilize Xianglong's modern hydraulic cone crusher as the core of their process, employing a fully hydraulic automatic discharge port fine-tuning and fault self-diagnosis system connected to the central control unit to achieve lean, high-standard gradation control under high output conditions.
The scale of the project directly determines the energy level matching of the equipment. XLM Machinery offers customized jaw crusher coarse crushing + cone crusher hard rock crushing, ensuring every penny of your budget translates into a high premium for your finished sand and gravel..
5.Recommended high-quality crusher matrix from Xianglong Machinery.

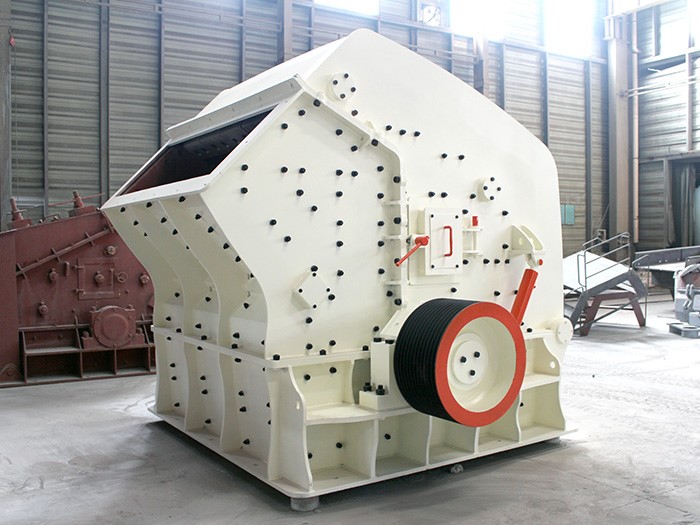

The impact crusher is designed for processing building aggregates such as limestone and bluestone. The XLM-Impact series maximizes the utilization of impact energy.
For low-to-medium hardness materials, such as limestone, dolomite, gypsum, and construction waste—the Impact Crusher is the optimal choice. Its high-speed rotor drives blow bars to fracture the rock along natural cleavage planes, delivering exceptionally well-shaped aggregate. However, it is not recommended for high-hardness materials, as excessive wear on consumable parts would significantly drive up operating costs.
Instead of fast food fashion concept, vetiver is based on the idea of the wearer, not limited to the scope of age or season.

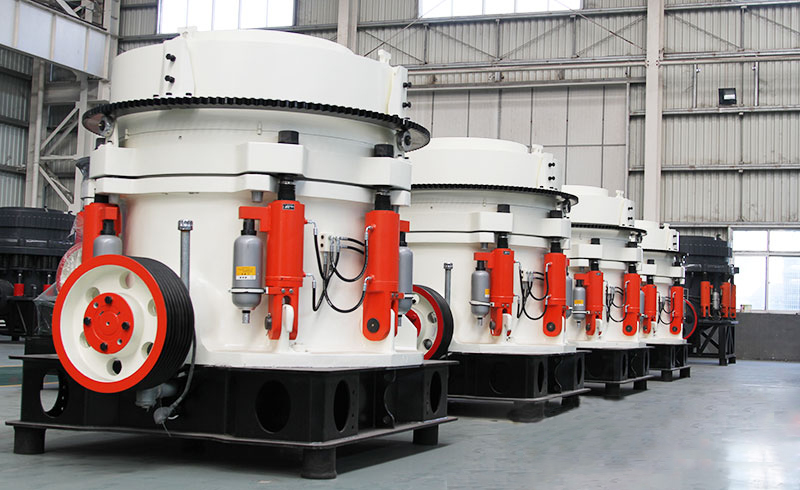

Cone Crusher Mastering Hard Rock
For highly abrasive hard rocks such as granite, basalt, and river pebbles, the XLM-Cone series achieves a balance between high yield and excellent grain shape.
When investing in a heavy-duty Stone Crusher Machinery, safety and structural durability are your top priorities. At XLMAC, every Crusher Machinery is designed and manufactured to meet the strictest international standards. Holding both CE and SGS certifications, our mobile crushing and screening equipment guarantees not only high operational reliability on your job site but also a smooth, hassle-free customs clearance process in your country..
Our products are exported to dozens of countries and regions in Southeast Asia, Africa, the Middle East, and Latin America..
We provide overseas remote technical support, on-site installation and commissioning, and localized operator trai
There is no absolutely optimal equipment for high-material aggregates; there is only the solution that best suits the working conditions. For medium-soft materials such as limestone and bluestone, and for small-to-medium-sized short-term production lines, the Xianglong high-material impact crusher is the preferred low-cost option. For hard rocks such as granite and basalt, and for large-scale long-term mines, the XLM multi-cylinder hydraulic cone crusher balances stable production capacity with ultra-low operating and maintenance costs.
